Orchestrating Sound: A Student’s Deep Dive into the Engineering of TWS Earbuds

As a Telecommunications Engineering student, I spend a lot of my time dealing with the abstract. We talk about "density" in class—spectral efficiency, channel capacity, modulation schemes—often as equations on a whiteboard.

But recently, I encountered a different kind of density. I decided to tear down a broken pair of TWS earbuds, and it hit me: we are packing a radio station, a power plant, and a concert hall into a device smaller than a grape.

I wanted to peel back the plastic and see how the theory I study in university translates into the marvelous engineering hidden inside these everyday devices. How do we actually orchestrate high-fidelity sound and RF signals in such a hostile, tiny environment?

Let’s dive into the teardown.

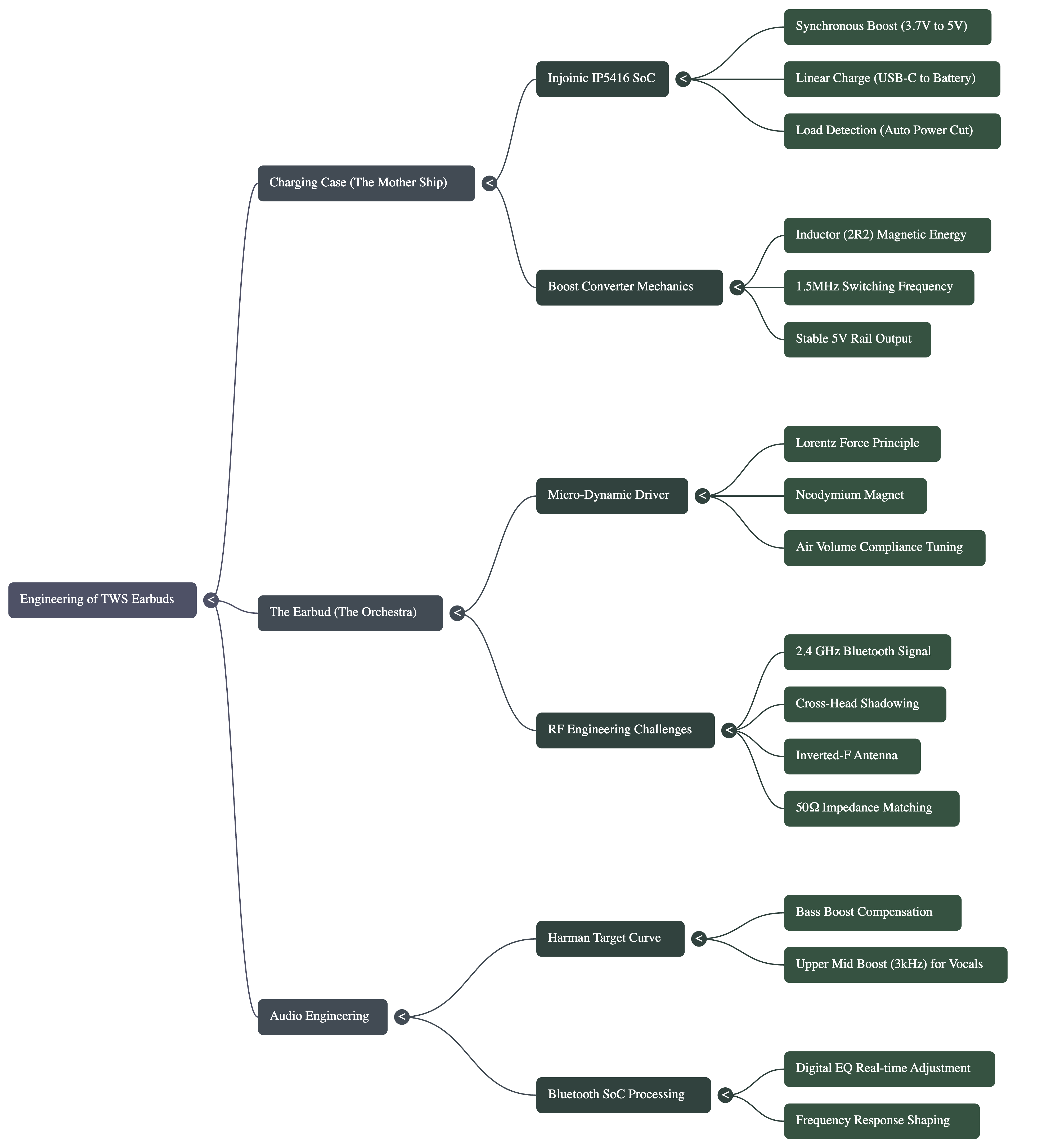

Part 1: The Mother Ship (The Charging Case)

We tend to think of the case as just a "battery holder," but electrically, it’s a fascinating study in state management.

When you drop your earbuds into the case, a very specific "handshake" occurs. The board doesn't just dump power; it negotiates.

The Brain: Injoinic IP5416

At the heart of the PCB lies the IP5416 SoC. This chip is doing three things simultaneously:

• Synchronous Boost: It takes the 3.7V from the Li-Po battery and boosts it to 5V to charge the buds.

• Linear Charge: It takes 5V from your USB-C wall charger to top up the case battery.

• Load Detection: This is the cool part. It monitors the current draw on the pins. If the draw drops below ~30mA (meaning the buds are full), it cuts power to save energy.

The Boost Converter Visualization

I built a small mental model to visualize the boost converter's job. Imagine the battery as a water tank at low pressure (3.7V). The earbuds need high pressure (5V) to fill up.

The Inductor (2R2) acts like a hydraulic ram. It switches on and off thousands of times a second, building up magnetic energy and then "flinging" it forward at a higher voltage.

• Input: 3.7V (Battery)

• Switching Action: ~1.5MHz frequency

• Output: 5V (Stable Rail)

Part 2: The Orchestra (The Earbud)

If the case is the power plant, the earbud is the orchestra. But it’s an orchestra playing inside a sealed room.

The Dynamic Driver

The silver disk inside is a Micro-Dynamic Driver. It works on the principle of the Lorentz Force.

F=I x L x B

• I (Current): The audio signal from the Bluetooth chip.

• L (Length): The length of the voice coil wire.

• B (Magnetic Field): The strength of the Neodymium magnet.

When the music plays, the coil pushes against the magnet, moving the diaphragm. But here is the catch: Air Volume.

Because the ear canal is sealed, the driver has to work against the air pressure trapped inside your ear. Engineers have to tune the "compliance" of the driver (how stiff it is) to ensure the bass doesn't sound "boomy" or distorted.

The RF Challenge (The "Bag of Salt Water" Problem)

This is where the engineering gets truly difficult, and where my telecom coursework really comes into play.

Bluetooth operates at 2.4 GHz. Do you know what absorbs 2.4 GHz signals really well? Water.

And do you know what the human head is mostly made of? Salt water.

To get the signal from the left ear to the right ear, the signal has to effectively "bend" around your head (a phenomenon called Cross-Head Shadowing).

If you look closely at the green PCB inside the earbud cap, you might see a gold, squiggly line. That is an Inverted-F Antenna.

• The Goal: Perfect 50Ω impedance matching.

• The Reality: The battery is a giant metal block sitting millimeters away, trying to detune the antenna.

RF Engineers use simulation software like ANSYS HFSS to model the electromagnetic fields around the human skull, tweaking the antenna shape by fractions of a millimeter to ensure your music doesn't cut out when you turn your head. 👀

Part 3: The "Harman Target"

Finally, there is the sound itself. We don't actually want a "flat" sound. Flat sound is boring.

Audio engineers aim for something called the Harman Target—a frequency response curve that mimics the sound of good speakers in a good room.

• Bass Boost: To compensate for the lack of physical impact on your body.

• Upper Mid Boost (3kHz): To make vocals clear and "present."

The Bluetooth SoC (System on Chip) inside the bud applies a digital EQ (Equalizer) to the raw sound of the driver to force it to match this curve. It is literally "photoshopping" the audio in real-time before it hits your ears.

Conclusion

The next time you pop these into your ears, remember: you aren't just wearing headphones. You are wearing a finely tuned radio tower, a power management system, and a physics experiment, all balancing on the edge of what's physically possible.

And that, to me, is the real magic.
